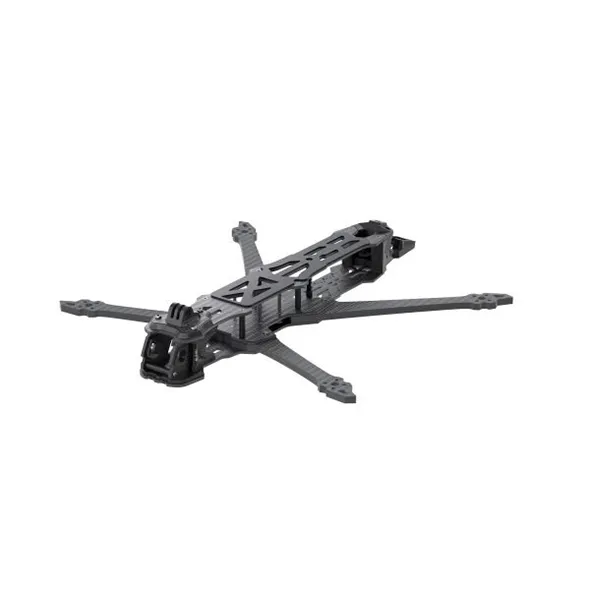

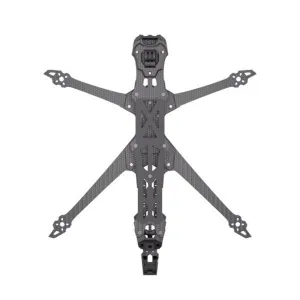

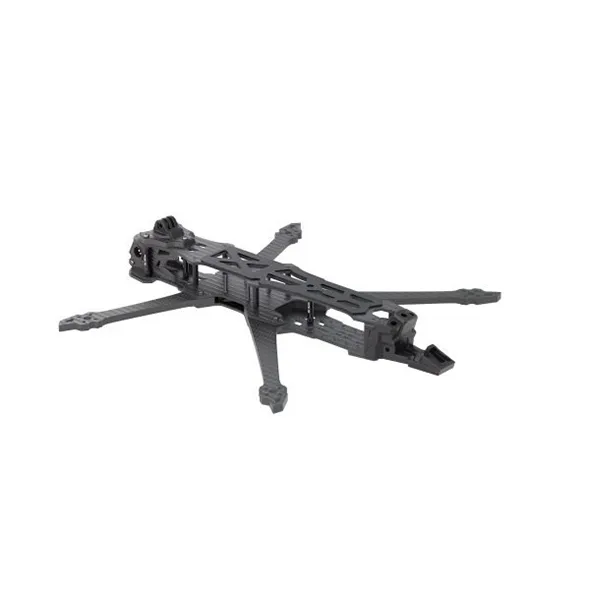

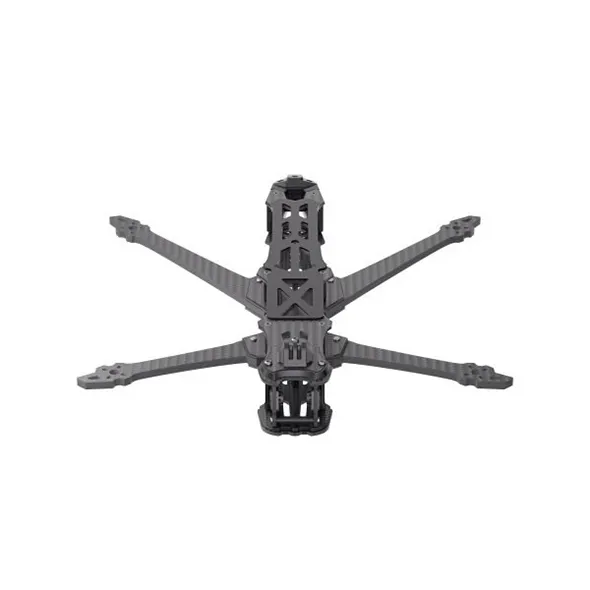

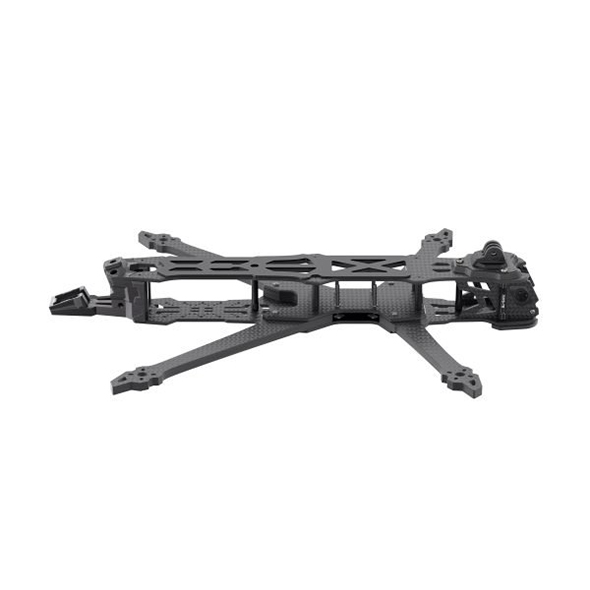

The Pulsar LR9 is a premium 9-inch Carbon Fiber Drone Frame kit, engineered for long-range flight. With a 385mm wheelbase, 7mm thick carbon fiber arms, and aviation-grade aluminum columns, it offers exceptional wind resistance and durability. Its spacious design accommodates diverse electronics, while TPU camera mounts reduce video jello—ideal for professional long-range FPV and industrial missions.

Technical Specifications

Model: Pulsar LR9

Category: 9-inch Carbon Fiber Drone Frames (compatible with 10"/11" options)

Frame Type: Pulsar LR9 Frame KIT

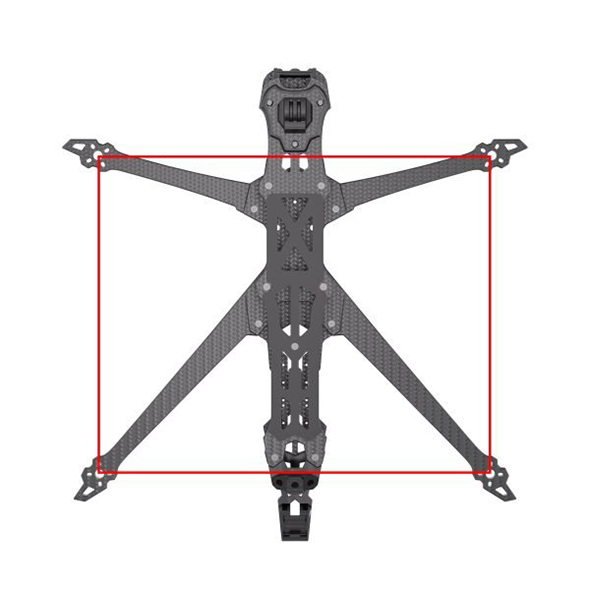

Wheelbase: 385mm (long-range optimized)

Top Plate: 3.0mm carbon fiber

Bottom Plate: 3.0mm carbon fiber

Arm Plate: 7.0mm carbon fiber (enhanced durability)

Arm Splint: 3mm carbon fiber

Camera Mount Splint: 3.0mm carbon fiber

FC Installation Position: 30.5×30.5mm (standard fit)

VTX Installation Position: 20×20mm / 25.5×25.5mm / 30.5×30.5mm (max 30.5×30.5mm)

Camera Installation Size: 19mm/20mm

Weight: 563.4g ±5g

Compatible Propellers: 9-inch (10"/11" for larger models)

Included Accessories: 1×frame, 2×M20×250mm battery straps, 2×battery non-slip pads, 1×screw pack, 1×3D printed parts, 3×L-shaped screwdrivers (1.5mm/2mm/3mm)

Product Features

Long-Range Performance: 385mm wheelbase and rigid carbon fiber construction minimize wind impact, ensuring stable flight over extended distances.

Anti-Jello Camera Mount: Special TPU 3D-printed structure reduces vibration, delivering smoother footage—critical for long-range FPV and mapping.

Ample Equipment Space: Spacious design accommodates large batteries, advanced sensors, and additional electronics, supporting diverse mission setups.

Ultra-Durable Arms: 7.0mm thick carbon fiber arm plates and 3mm splints withstand impacts and heavy loads, outlasting standard frames.

Premium Aluminum Columns: Custom aviation-grade 7075-T6 aluminum columns enhance structural integrity without adding excess weight.

How to Assemble the Frame

Unpack the Carbon Fiber Drone Frame Kit and verify all components, including plates, arms, aluminum columns, and accessories.

Attach 7mm arm plates to the 3mm bottom plate using screws from the pack, ensuring alignment with pre-drilled holes.

Secure aviation-grade aluminum columns between top and bottom plates to reinforce the structure.

Mount the camera bracket (3mm splint) and install TPU anti-jello components for stable imaging.

Fix the top plate, then use included straps and pads to set up battery positioning—compatible with most long-range battery sizes.

Application Scenarios

Perfect for: Long-range FPV racing, aerial mapping/surveying, industrial inspections (power lines, pipelines), environmental monitoring, and custom drone projects requiring extended flight distances.

Value to Buyers

Reliability in Long-Range Missions: Wind-resistant design reduces mission failures; durable construction minimizes downtime from crashes.

Flexibility: Multi-size installation positions (FC, VTX, camera) eliminate the need for custom adapters, saving time and costs.

Complete Kit: Included tools and accessories streamline assembly, reducing the need for additional drone accessories purchases.

Scalability: Compatible with 9"/10"/11" propellers, adapting to evolving project requirements without frame replacement.

Certifications and Compliance

Complies with CE, FCC, and ROHS standards, ensuring compatibility with global import regulations and safe operation in international markets.

Customization Options

Offers size customization (9"/10"/11" wheelbases) and arm thickness adjustments (6-8mm) for specific mission needs. Custom Carbon Fiber Sheet finishes and logo engraving available for bulk orders.

Production Process

Each frame undergoes precision Carbon Fiber Cnc Cutting for accurate dimensions, followed by layer pressing to enhance strength. Aluminum columns are CNC-machined from 7075-T6 stock. Final inspection includes stress testing and fit checks for all components.

FAQ

Q: What’s the maximum weight this frame can support?

A: It handles up to 3kg (including battery and equipment), suitable for long-range setups.

Q: Is it compatible with standard flight controllers?

A: Yes, 30.5×30.5mm FC installation position fits most professional controllers.

Q: Can I use 10-inch propellers on the LR9 model?

A: The LR9 is optimized for 9-inch props; choose Pulsar LR10 for 10-inch compatibility.

Q: How does the TPU mount reduce video jello?

A: Its flexible structure absorbs vibr
