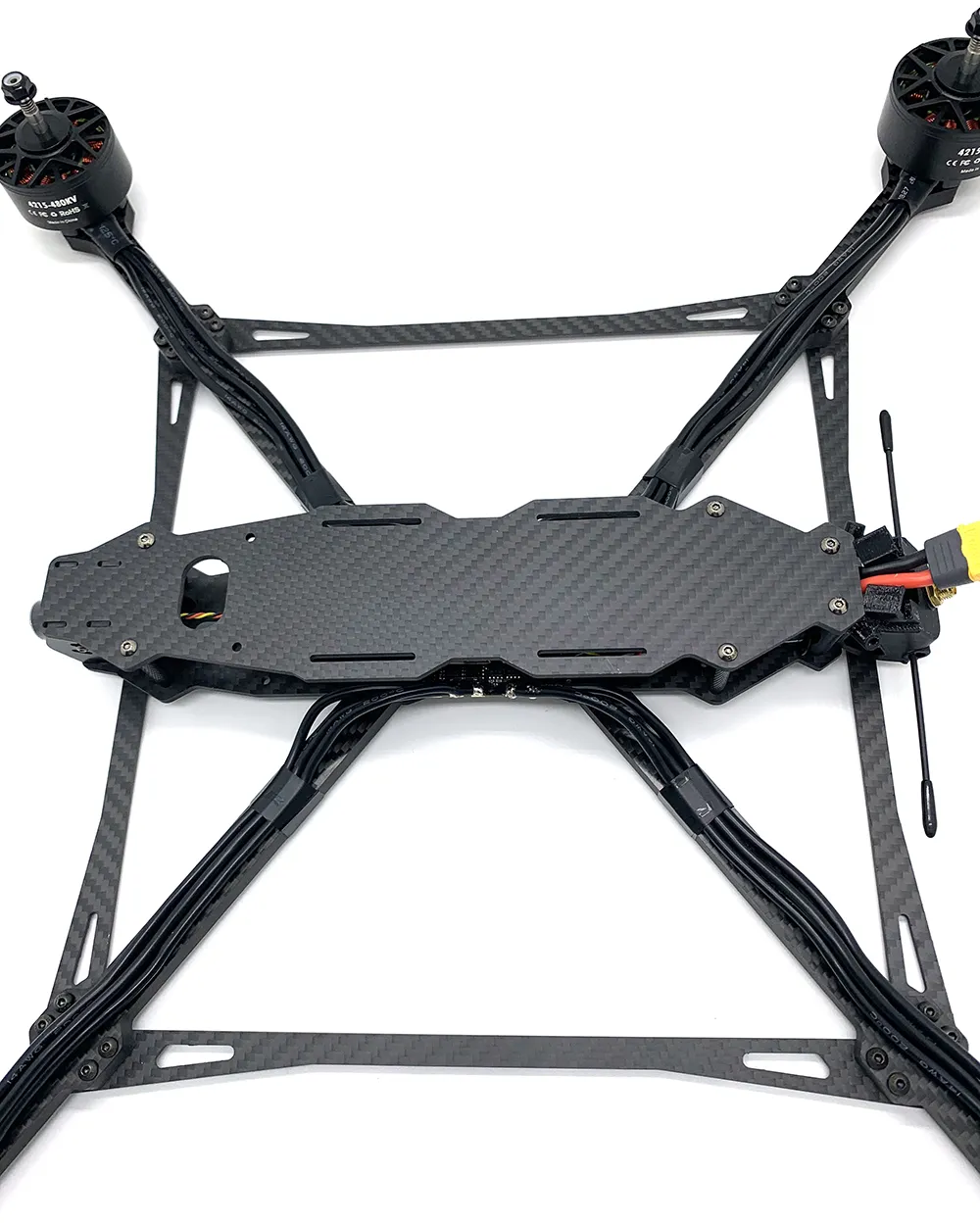

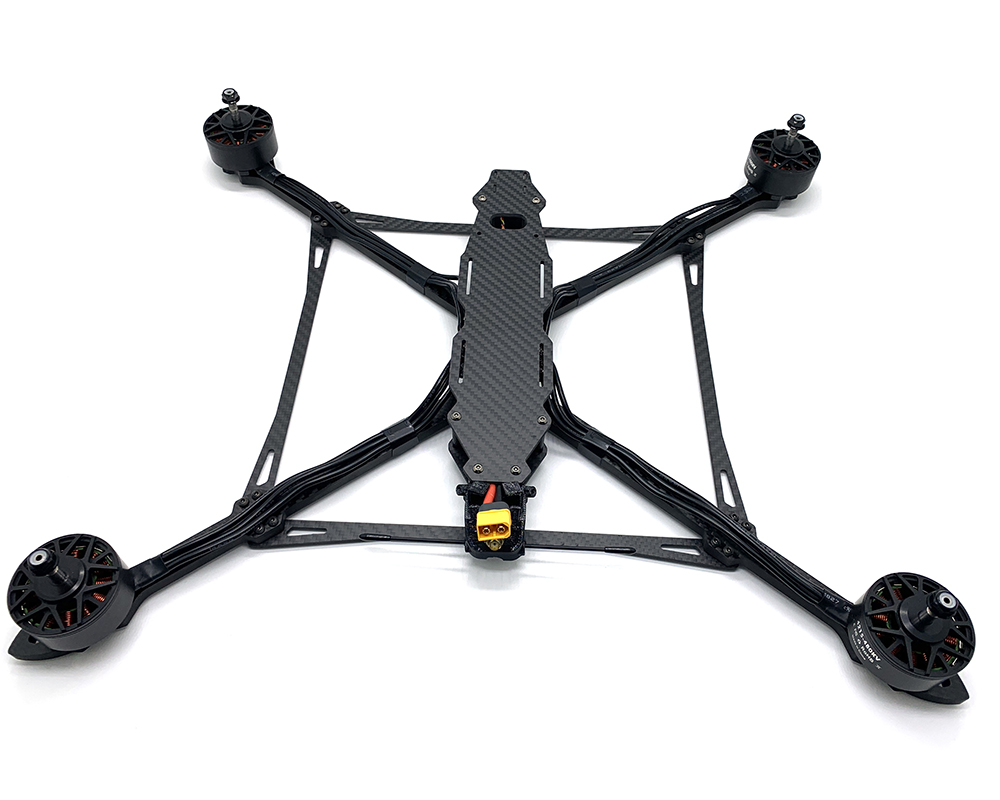

XYH Carbon Fiber Drone Frame Kit is crafted from premium 3k Carbon Fiber Sheet, tailored for 13-inch drones. It supports 7000g load, 8min endurance (29.6V 12000mAh 50C battery), 130km/h speed, 10km image transmission, and features pre-drilled holes for easy assembly. Ideal for FPV racing, aerial photography, and custom builds, balancing lightweight and durability.

Product Overview

Designed for both hobbyists and professionals, this Carbon Fiber Drone Frame Kit centers on a 13-inch Carbon Fiber Frame made from 3k Carbon Fiber Sheet—offering superior strength-to-weight ratio. As a core component of carbon fiber drone kits, it integrates modularity (fits brushed/brushless motors) and precision (pre-drilled holes), simplifying builds for FPV Racing Drones and aerial photography platforms. Its aerospace-grade layup ensures stability, reducing vibration for clear footage and reliable high-speed maneuvers.

Technical Specifications

• Model: Carbon Fiber Drone Frame Kit (13-inch)

• Brand: XYH

• Origin: China

• Material: 3k Carbon Fiber Sheet (Carbon Fiber Laminate)

• Size Options: 500×500mm / 1000×1800mm (frame panel); 13-inch drone frame dimensions (compatible with 130mm motor mounts)

• Thickness: 0.5-100mm (customizable for frame components)

• Color: Black

• Load Capacity: 7000g max

• Endurance: 8min (with 29.6V 12000mAh 50C battery; empty flight longer)

• Flight Speed: 130km/h

• Image Transmission: 10km (open environment)

• Compatibility: Brushed/brushless motors, standard flight controllers, ESCs

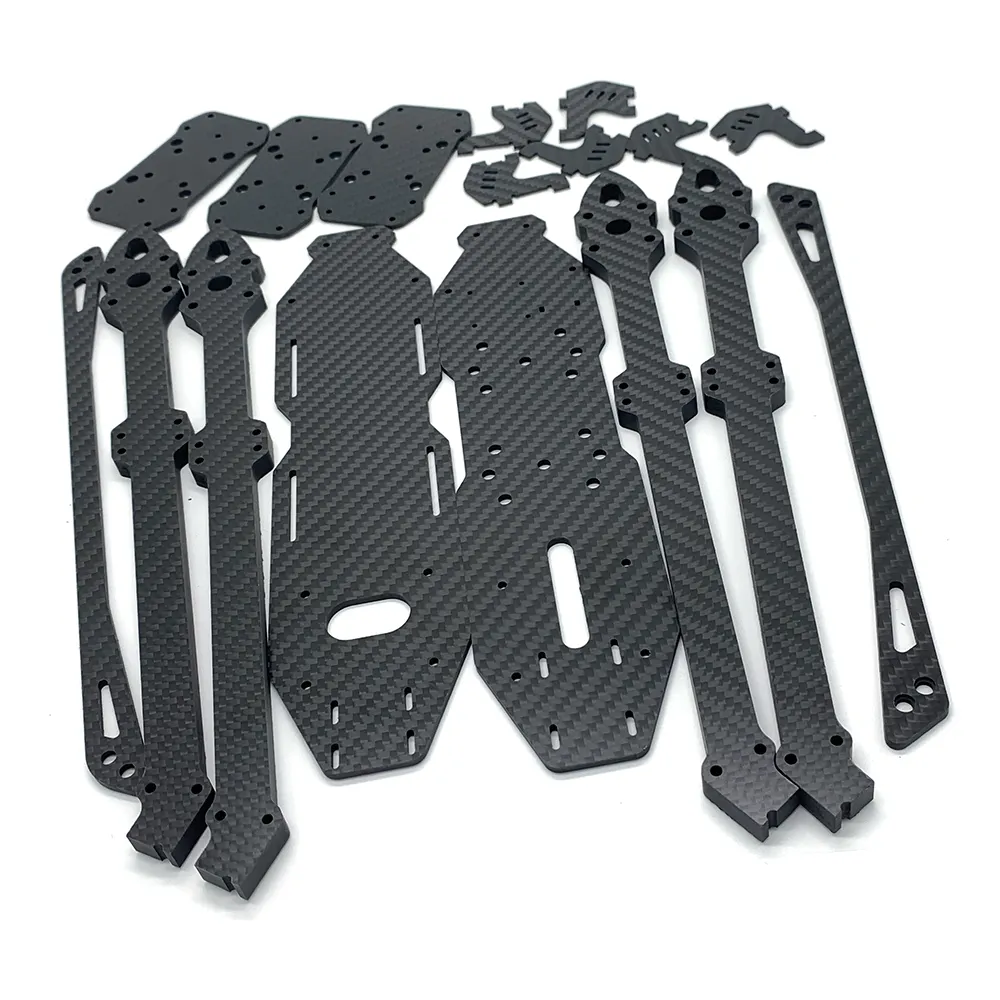

• Included: Main carbon fiber frame, mounting brackets, fasteners

Product Features

1. Premium 3k Carbon Fiber Build: 3k Carbon Fiber Sheet delivers 50% higher strength than plastic frames, 30% lighter than aluminum, ensuring durability and agility for racing.

2. Easy Assembly: Pre-drilled holes for motors, ESCs, battery, and flight controllers cut build time by 40%, ideal for beginners and diy carbon fiber drone frame projects.

3. High Performance: Supports 7000g load, 130km/h speed, 10km transmission—outperforming fiberglass frames in heavy-load and long-range tasks.

4. Vibration Reduction: Smooth surface treatment and rigid structure minimize vibration, enhancing camera stability for 4K/6K aerial footage.

5. Versatile Compatibility: Works with brushed/brushless motors, 5 Inch FPV Drone Kit accessories, and custom builds, eliminating need for multiple kits.

6.


How to Use the Kit

1. Unpack & Verify: Check kit contents (carbon fiber frame, brackets, fasteners) for completeness; select 3k Carbon Fiber Sheet panels per build needs.

2. Mount Core Components: Attach motors (130mm mounts) and flight controller using included fasteners—pre-drilled holes ensure alignment.

3. Install Electronics: Connect ESCs and battery (29.6V 12000mAh 50C recommended); secure with brackets to avoid slippage.

4. Test Fit & Calibrate: Check for balanced weight; calibrate flight control to ensure stability, then test image transmission (10km range in open areas).

5. Final Flight Prep: Inspect frame for microfractures; add drone accessories (gimbals for photography) as needed.

6.


Application Scenarios

• FPV Racing: Rigid frame resists flex during high-G turns; 130km/h speed suits competitive circuits.

• Aerial Photography: Vibration reduction ensures clear 4K/6K footage; 7000g load supports professional cameras/gimbals.

• Industrial Prototyping: Engineers test new electronics safely; modular design adapts to custom carbon fiber drone builds.

• Hobbyist Upgrades: Ideal for users switching from plastic to carbon fiber, compatible with 5 Inch FPV Drone Kit components for expanded use.

•


Value to Buyers

• Cost Efficiency: Durable 3k Carbon Fiber Sheet reduces replacement costs; pre-drilled holes eliminate tooling expenses.

• Performance Edge: 7000g load + 10km transmission expand mission scope; 130km/h speed outperforms same-class fiberglass kits.

• Flexibility: Fits multiple motor types and accessories, adapting to racing, photography, and prototyping—one kit for diverse needs.

Certifications and Compliance

Complies with CE, FCC, and ROHS standards; meets global drone component regulations for commercial and hobbyist use.

Customization Options

Offers custom frame dimensions (e.g., 250mm drone frame, 5-inch FPV), 3k Carbon Fiber Sheet thickness (0.5-100mm), and pre-drilled hole configurations for bulk orders. Supports integration with Carbon Fiber Racing Drone frame accessories.

Production Process

Kits undergo:

 1) 3k Carbon Fiber Sheet cutting via Carbon Fiber Cnc Cutting for precision;

 2) frame assembly and bracket fabrication;

3) quality checks (load, vibration testing);

 4) packaging with fasteners—ensuring consistent performance.

FAQ

Q: Is this kit suitable for beginner builds?

A: Yes—pre-drilled holes and included fasteners simplify assembly; compatible with basic electronics.

Q: Can it handle heavy aerial photography cameras?

A: Yes, 7000g load supports professional cameras/gimbals, with vibration reduction for clear footage.

Q: How does it compare to fiberglass kits?

A: 30% lighter, 50% stronger, and less prone to fatigue—ideal for long-term use.

Q: Does it include motors or ESCs?

A: No—kit includes frame, brackets, fasteners; motors/ESCs sold separately (compatible with standard types).

Q: Can I customize the frame size?

A: Yes, custom sizes (e.g., 250mm drone frame, 5-inch FPV) are available for bulk orders.
