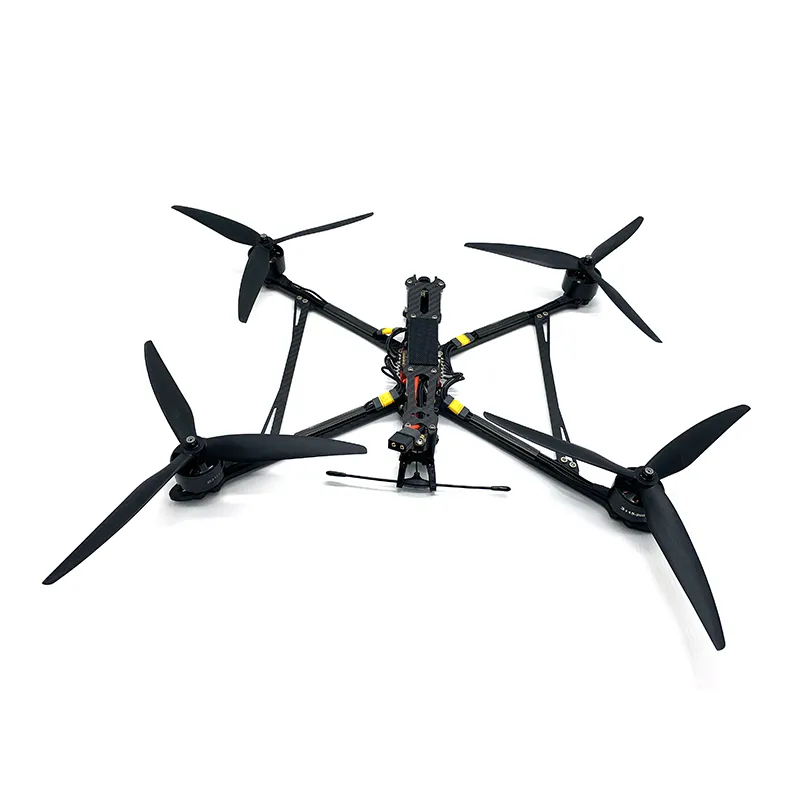

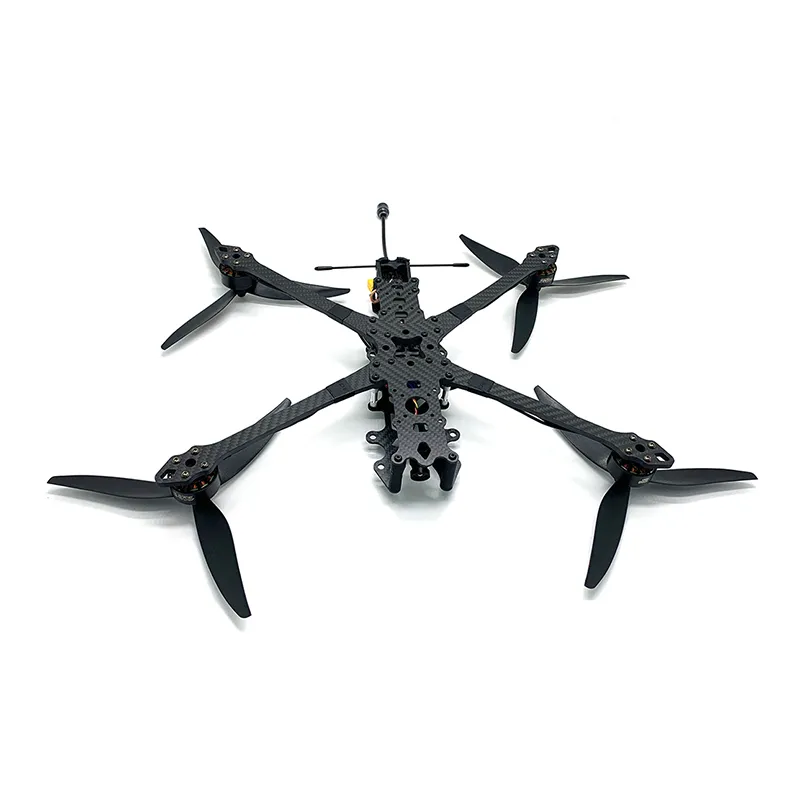

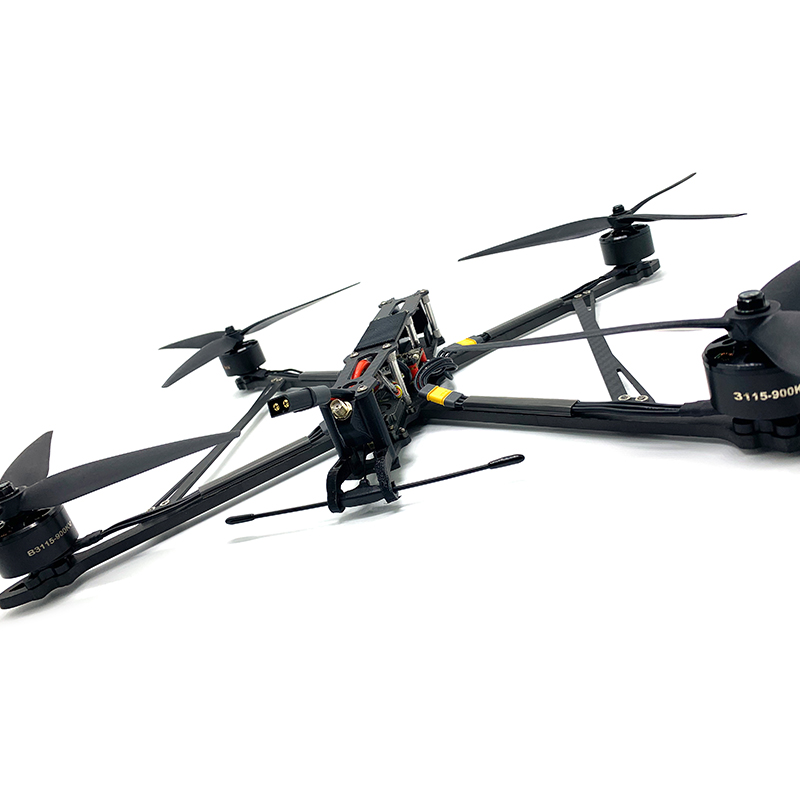

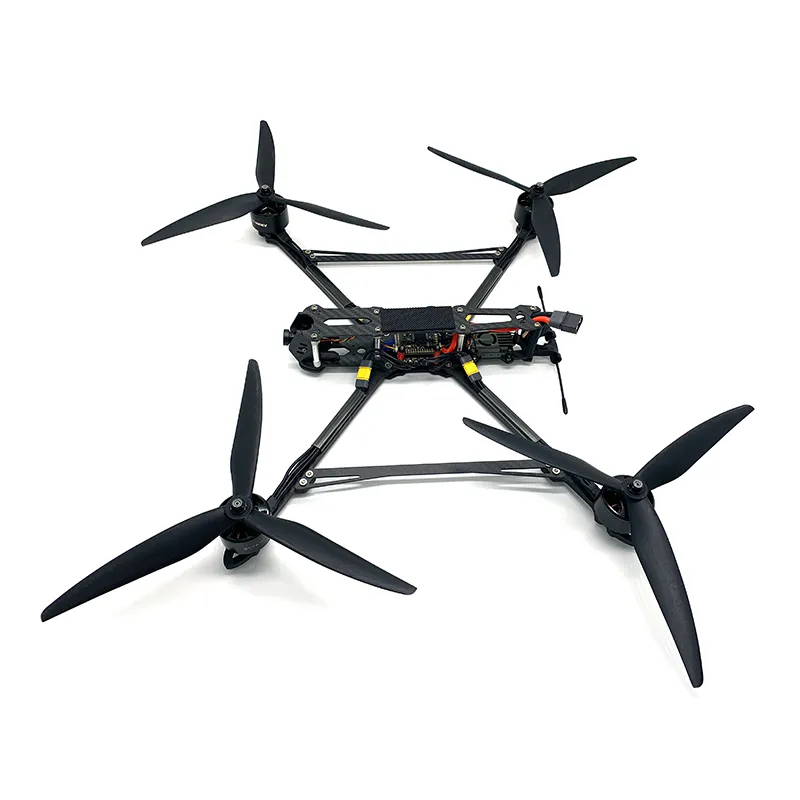

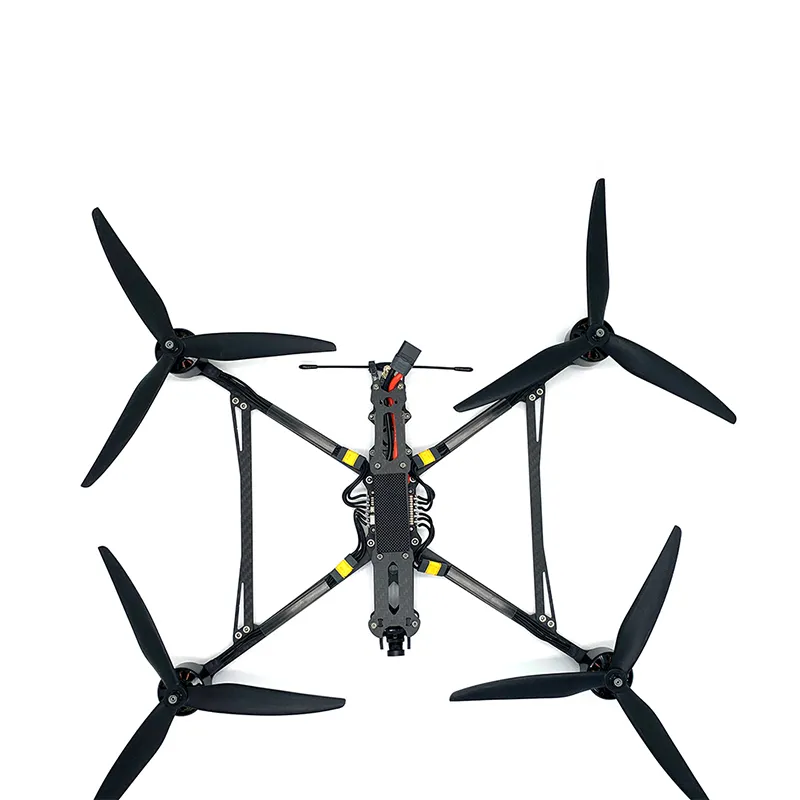

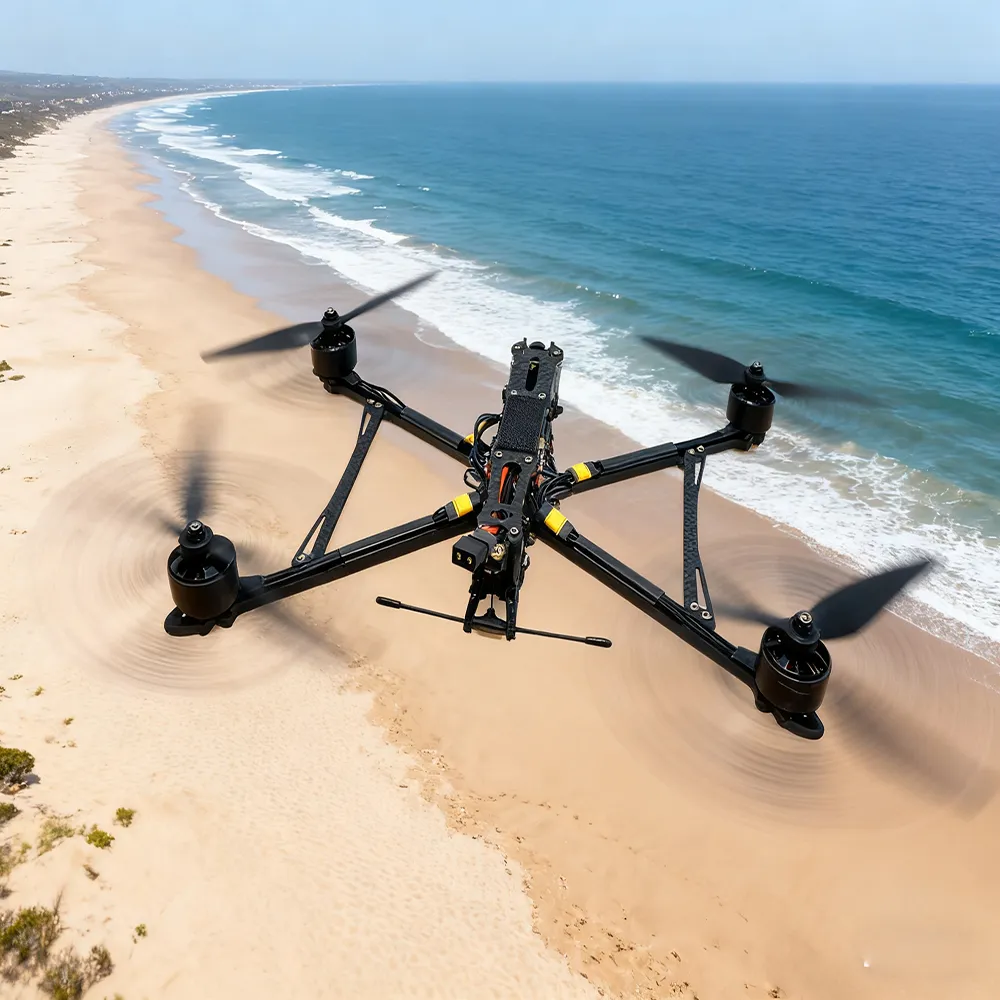

XYH’s 13-inch FPV carbon fiber drone features a 3K T300 Carbon Fiber Frame, offering flexible, stable flight. With 4115 motor (max 74km/h), 20km flight range, 5000m max altitude, and 7000g payload, it delivers 32min empty endurance & 7min loaded endurance. Equipped with 1800TVL night-vision camera and 2W 5.8G VTX, it’s ideal for professional FPV missions.

Product Overview

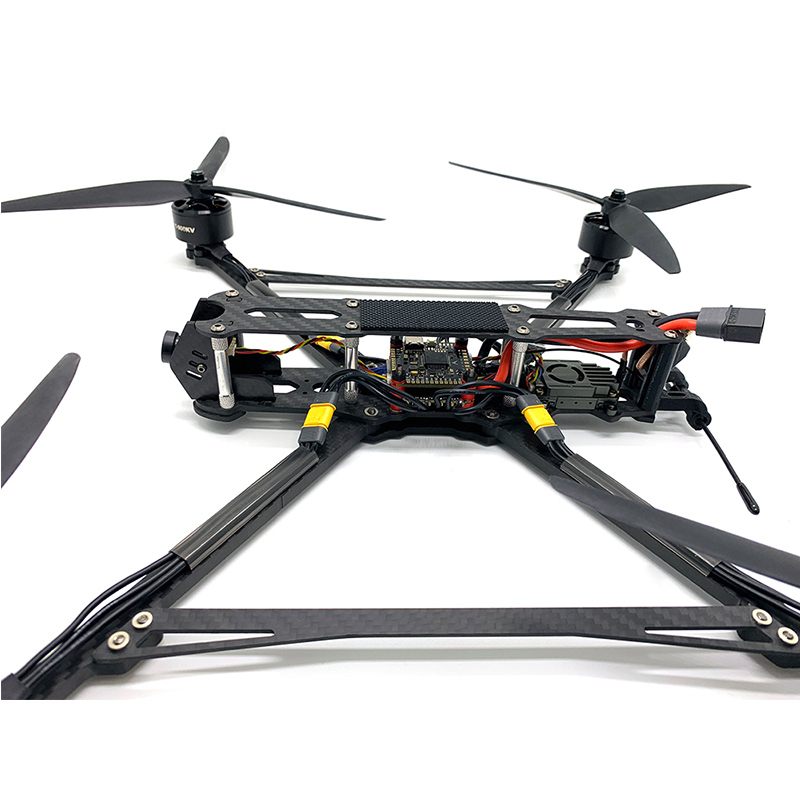

This 13-inch FPV Drone is built with premium 3K T300 carbon fiber, forming a lightweight yet durable Carbon Fiber Drone Frame. Designed for professional users, it supports FPV first-person view operation, ensuring flexible and stable flight. Key strengths include long 20km flight distance, 5000m max altitude, and 7000g heavy payload capacity, meeting demands of complex missions. As a core carbon fiber drone kit, it integrates high-end components for reliable performance.

Technical Specifications

Size: 490×390×75mm (drone); 520×420×100mm (color box)

Weight: 1358g (net); 1524g (packaged)

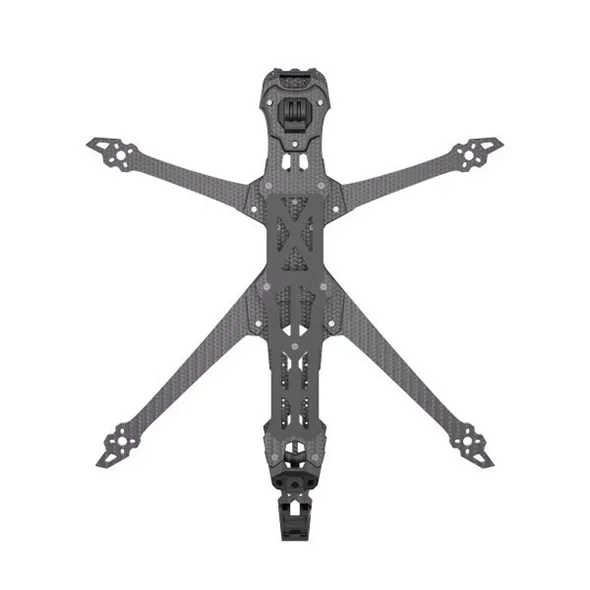

Frame: 3K T300 carbon fiber (7mm arm, 2mm top, 3mm middle/bottom plates)

Flight Control: BL F405 (STM32F405 MCU, MPU6000/ICM42688-P gyro)

ESC: 80A 4-in-1 (80A continuous, 85A peak; 3-6S LiPo)

Motor: 4115 440KV (19mm bolt pitch, M3 holes)

Propellers: 1310 carbon fiber nylon (1 pair)

Camera: 1800TVL night-vision FPV (165° FOV, Super WDR)

VTX: 5.8G 2W (48CH, 7-26V input)

Receiver: ELRS915M

Battery: Recommended 6S 12000mAh 50C

Flight: 20km range, 74km/h max speed, 5000m max altitude

Endurance: 32min (empty); 7min (7000g load)

Color: Black; Packaging: Color box

Product Features

Premium Carbon Fiber Build: The Carbon Fiber Drone Frame uses 3K T300 Carbon Fiber Sheet, balancing light weight (1358g net) and durability, resisting impacts during high-speed flight.

Strong Performance: 4115 motor delivers 74km/h speed; 20km flight range (5.8G 2W VTX) and 5000m altitude suit long-range missions.

Heavy Payload: 7000g max load supports accessories like AI lock or thermal imaging modules, expanding usability.

Clear FPV Vision: 1800TVL night-vision camera (0.0001LUX low light) ensures sharp visuals day/night; 165° FOV covers wide scenes.

Reliable Electronics: 80A ESC (DShot support) and BL F405 flight control enable stable, responsive maneuvering.

How to Use the Drone

Unbox and inspect the carbon fiber drone frame and components (camera, motor, propellers).

Install the 1310 propellers (1 pair, one clockwise/one counterclockwise) on motors.

Connect the recommended 6S 12000mAh 50C battery via battery straps.

Power on the drone and remote; calibrate the flight control (follow F405 firmware prompts).

Test FPV signal (5.8G VTX) in open area, then conduct a short test flight to check stability.

Application Scenarios

Ideal for: Professional FPV racing, long-range aerial surveys, industrial inspections (e.g., power lines), search-and-rescue missions (with payload modules), and night-time monitoring (via night-vision camera).

Value to Buyers

Durable carbon fiber frame reduces replacement costs; 7000g payload boosts versatility.

32min empty endurance cuts downtime; 20km range expands mission scope.

Night-vision camera enables 24/7 use; ELRS915M receiver ensures stable signal.

Certifications and Compliance

Complies with CE, FCC, and ROHS standards; meets global import regulations for professional drones.

Customization Options

Offers optional modules: AI lock, infrared thermal imaging, fiber optic communication (3/5/10/15km), and 7kg thrower. Custom carbon fiber drone frame dimensions available on request.

Production Process

Each drone undergoes strict quality control: Carbon Fiber Cnc Cutting for frame precision, component assembly (motor, ESC, camera), flight testing (stability, signal), and final inspection before packaging.

FAQ

Q: What’s the drone’s max flight time?

A: 32min (empty endurance); 7min with 7000g load (using 6S 12000mAh 50C battery).

Q: Can it fly at night?

A: Yes, 1800TVL night-vision camera (0.0001LUX) supports night flight.

Q: Is the frame customizable?

A: Yes, custom carbon fiber drone frame dimensions and modules are available.

Q: What’s the payload capacity?

A: Max 7000g, compatible with optional throwers or imaging modules.

Q: Does it support long-range control?

A: ELRS915M receiver and 2W 5.8G VTX enable 20km flight range (open area).
