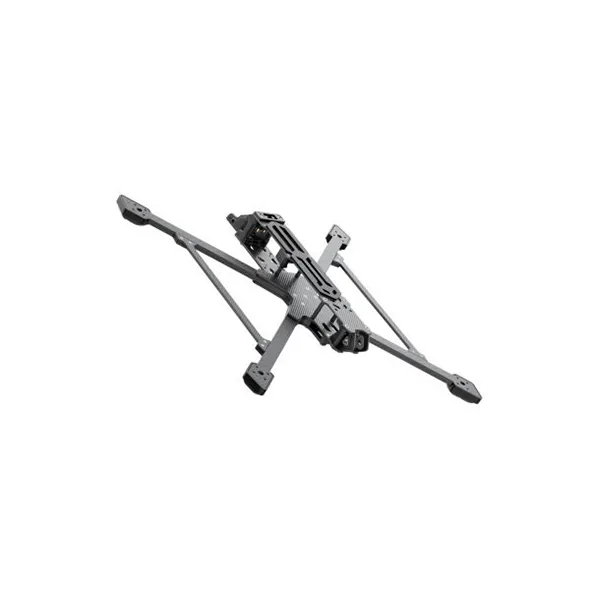

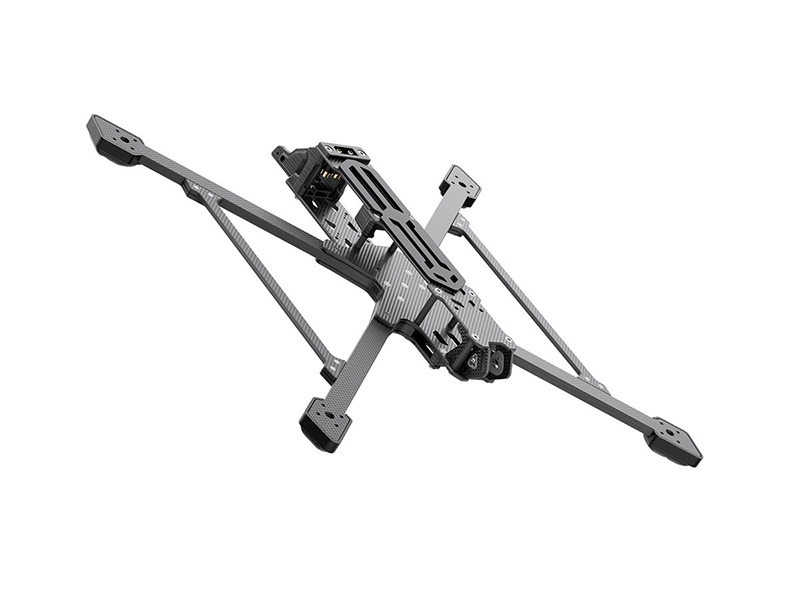

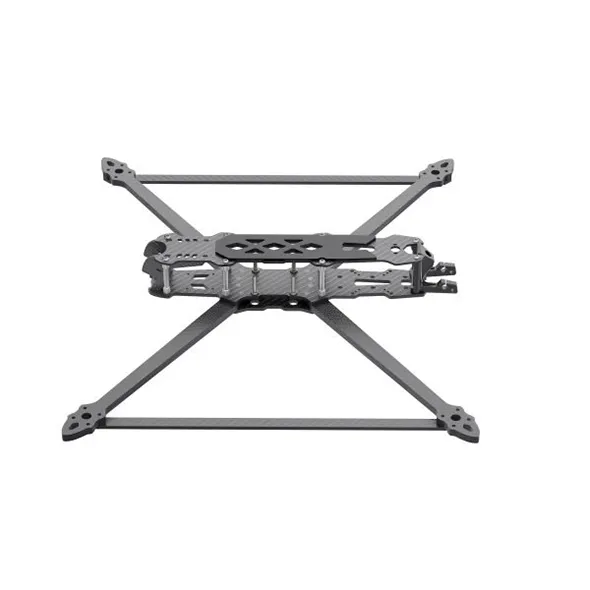

The EF10 FPV Drone Frame, a 10-inch wide X-shaped Carbon Fiber Frame, features 7mm thick arms and 3.5mm stiffeners for durability. With 430mm motor spacing and 366g weight, it ensures stability and flexibility, ideal for FPV racing and aerial missions. Compatible with standard components, it’s a top Carbon Fiber Drone Frame kit choice.

Product Overview

The EF10 FPV Drone Frame leads the EF series with a robust, durable design tailored for FPV enthusiasts and professionals. Crafted as a premium Carbon Fiber Drone Frame, its wide X-shaped structure balances stability and agility—critical for high-speed racing and precision maneuvers. Reinforced by 7mm arms and 3.5mm stiffener bars, it withstands impacts while maintaining lightweight performance (366g), making it a core component in carbon fiber drone kits for both beginners and experts.

Technical Specifications

Item: EF10-inch FPV Drone Frame

Categories: 10-inch Frames

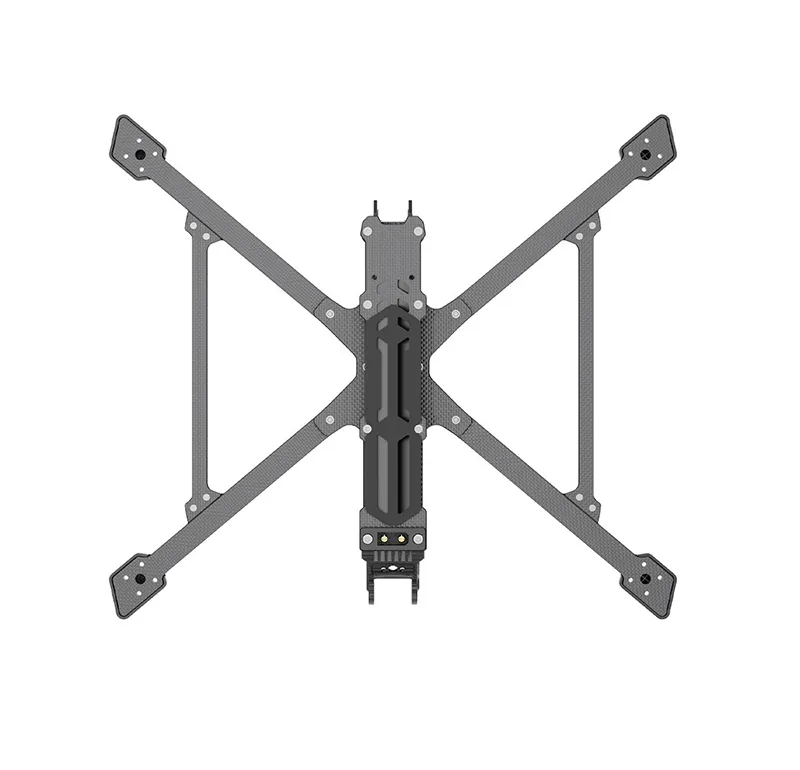

Frame Type: Wide X-shape

Motor-to-Motor Distance: 430mm

Overall Dimension: 370×320mm

Top Plate Thickness: 2.5mm (carbon fiber)

Mid Plate Thickness: 3mm (carbon fiber)

Bottom Plate Thickness: 3mm (carbon fiber)

Side Plate Thickness: 2.5mm (carbon fiber)

Arm Thickness: 7mm (high-strength carbon fiber)

Front Stiffener Plate: 7mm

Arm Stiffener Bar: 3.5mm

Stack Fixing Holes: 30.5×30.5mm/M3

VTX Fixing Holes: 30.5×30.5mm/M3, 25.5×25.5mm/M2, 20×20mm/M3

Motor Fixing Holes: 19×19mm/M3

Camera Side Plate Space: 19×19mm

Stack Mounting Height: 25mm

Weight: 366g (without pads)

Product Features

Robust Carbon Fiber Construction: Made from high-grade Carbon Fiber Sheet, the frame combines 7mm thick arms and 3.5mm stiffeners for exceptional durability, resisting crashes during FPV racing.

Wide X-Shape Design: Enhances flight stability at high speeds while maintaining flexibility for tight turns—key for competitive racing and complex aerial paths.

Enhanced Endurance: Stiffener bars reduce frame vibration, improving energy efficiency and extending flight time for carbon fiber drones.

Convenient Power Plug: Stationary-type design simplifies charging and battery swaps, reducing downtime between flights.

Universal Compatibility: Multiple fixing hole sizes (30.5×30.5mm, 25.5×25.5mm, 20×20mm) fit standard FPV components, making it a versatile Carbon Fiber Drone Frame Kit.

How to Assemble the Frame

Unpack the EF10 frame and verify components: top/mid/bottom plates, 7mm arms, stiffener bars, and hardware.

Attach 7mm arms to the bottom plate using M3 screws, ensuring alignment with 19×19mm motor holes.

Install 3.5mm stiffener bars between arms to reinforce structure, then secure the mid plate.

Mount the top plate (25mm stack height) and side plates, using pre-drilled holes for precision.

Connect stationary power plug and install compatible components (motor, ESC, FC) as per recommended kits.

Application Scenarios

FPV Racing: High-speed competitions requiring stable, agile frames.

Aerial Photography: Smooth flights for capturing steady footage with FPV drones.

DIY Drone Builds: Custom projects using carbon fiber drone frame kits and compatible accessories.

Racing Training: Durable design withstands frequent practice sessions.

Value to Buyers

Durability: Reduces replacement costs from crashes, ideal for frequent racers.

Performance: Wide X-shape and stiffeners enhance stability, improving race results.

Versatility: Fits standard components, eliminating need for custom parts.

Efficiency: Quick battery swaps and easy assembly save time for training/competitions.

Certifications and Compliance

Complies with CE and FCC standards, ensuring compatibility with global FPV drone regulations.

Customization Options

Offers custom carbon fiber thickness (6-8mm arms) and color finishes. Supports pre-drilled holes for specific components on bulk orders.

Production Process

Frames undergo Carbon Fiber Cnc Cutting for precision, layer pressing for strength, and stress testing. Each unit is inspected for fit and durability before packaging.

FAQ

Q: What motors work with this frame?

A: Recommended EM3115 KV900; fits 19×19mm mount motors.

Q: Is it suitable for beginners?

A: Yes, durable design and standard sizing ease assembly for new builders.

Q: Can it handle heavy payloads?

A: Supports typical FPV setups; ideal for racing (lightweight focus).

Q: Are replacement parts available?

A: Yes, 7mm arms and stiffeners are sold as drone accessories.

Q: What’s the weight advantage?

A: 366g balances durability and agility, outperforming heavier frames.
