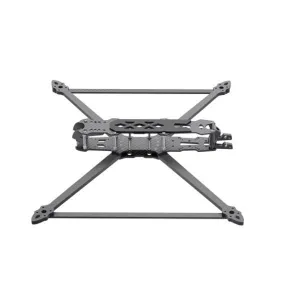

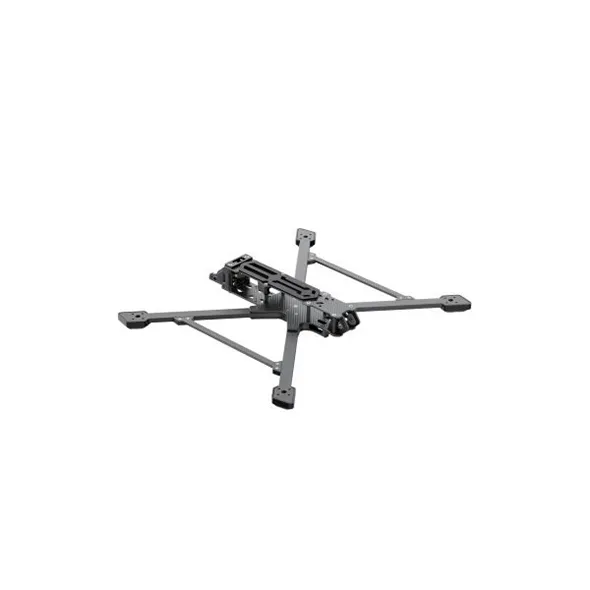

The Mark4-10 Drone Frame is a 10-inch Carbon Fiber Frame designed for heavy loads (up to 3kg) with 7mm thick arms. Lightweight (270g) yet rigid, it fits large batteries (6S 8000mAh) and supports diverse components, ideal for payload-carrying missions. Its reinforced structure ensures stability even with extra weight.

Product Overview

As a premium Carbon Fiber Drone Frame, the Mark4-10 excels in heavy-load operations while maintaining agility. Crafted from high-grade Carbon Fiber Sheet, this 10-inch frame balances strength (7mm arms) and lightness (270g), making it perfect for drones carrying cameras, sensors, or other payloads. With extended dimensions for large batteries and universal component compatibility, it’s a versatile choice for professional users and DIY carbon fiber drone kit builders.

Technical Specifications

Item: Mark4-10 Drone Frame

Categories: 10-inch Frames

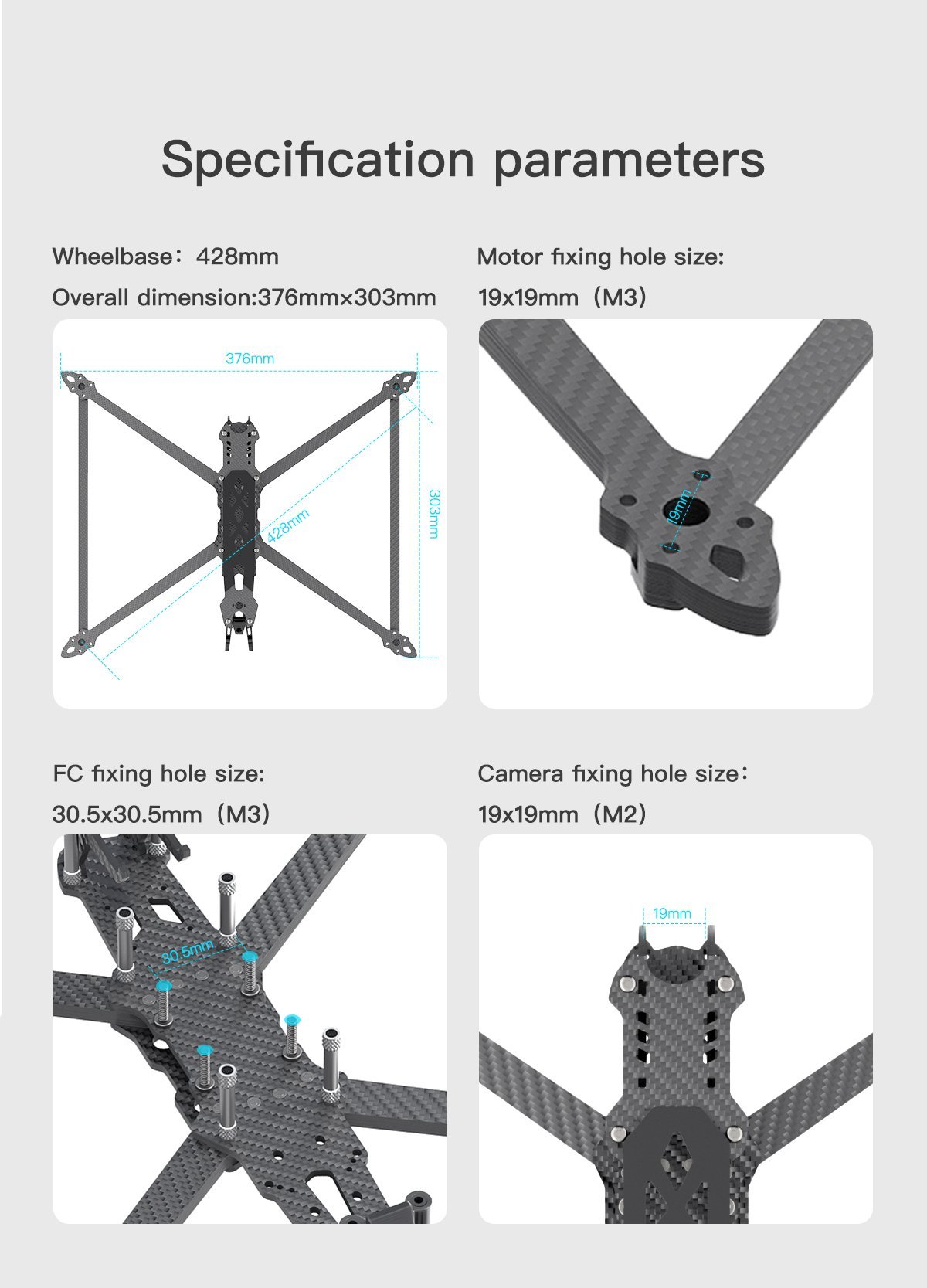

Dimension: 376mm×303mm

Motor-to-Motor Distance: 429mm

Top Plate: 2mm carbon fiber

Base Plate: 3mm carbon fiber

Side Plate: 2.5mm carbon fiber

Arm Plate: 7mm carbon fiber (high-strength)

Midplate: 3mm carbon fiber

Arm Bar: 3mm carbon fiber

Camera Fixing Holes: 19×19mm (M2)

Motor Fixing Holes: 19×19mm (M3)

FC Fixing Holes: 30.5×30.5mm (M3)

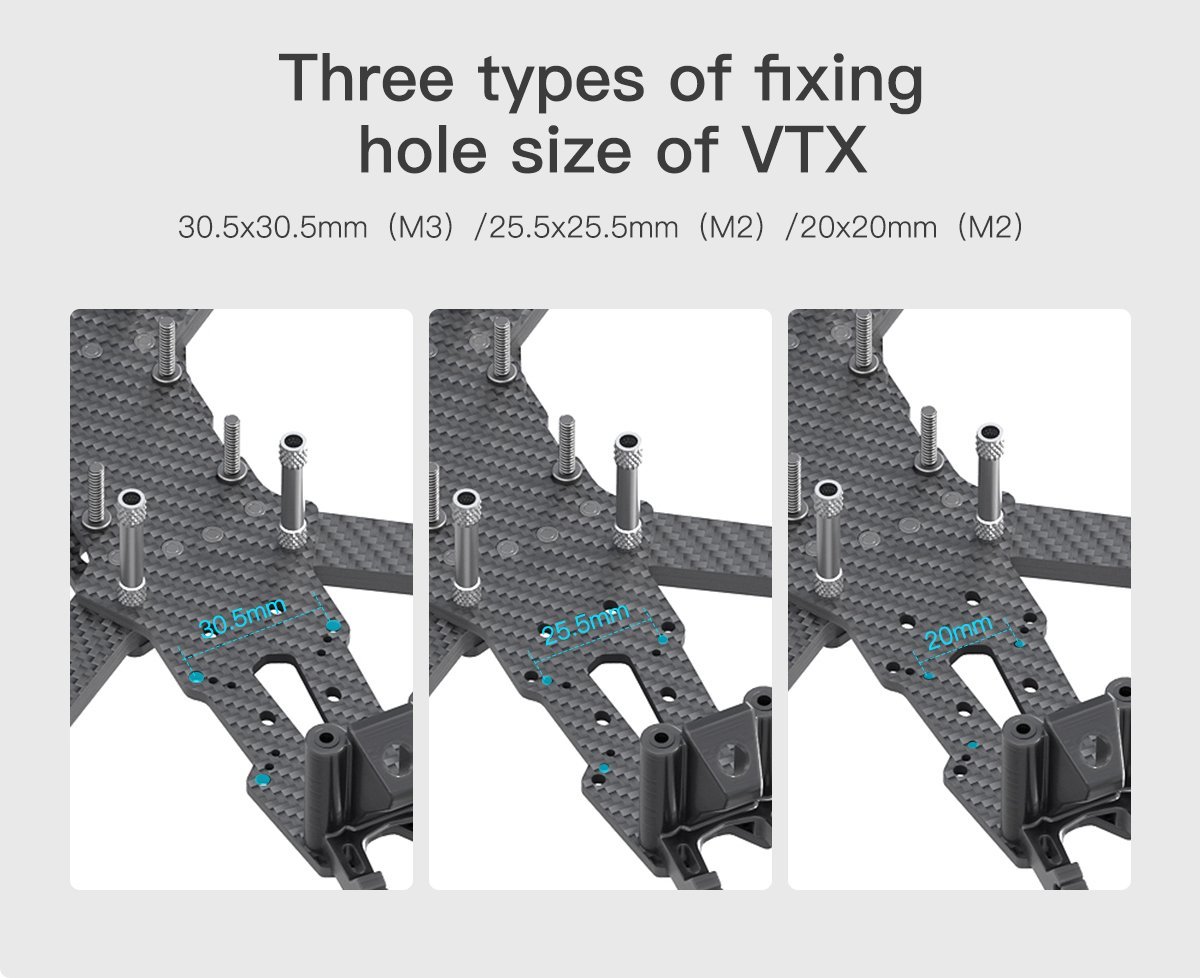

VTX Fixing Holes: 30.5×30.5mm (M3), 25.5×25.5mm (M2), 20×20mm (M2)

Weight: 270.0g

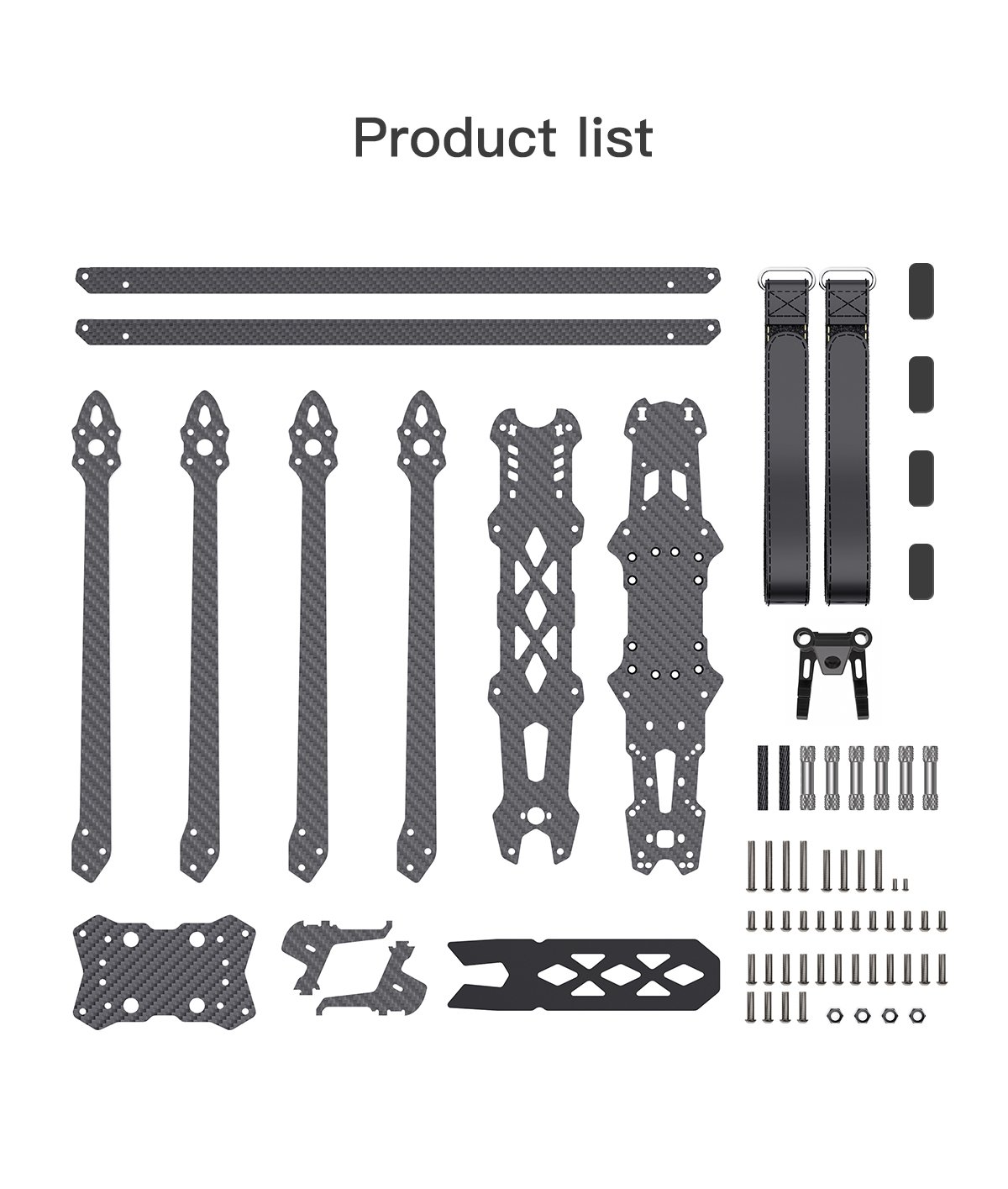

Included Accessories: 1×frame, 1×M20×300mm battery strap, 1×battery anti-slip pad, 4×EVA landing pads

Product Features

Heavy-Load Capacity: Supports up to 3kg payload with 3214/3115 900KV motors, ideal for aerial photography gear or industrial sensors.

Extended Battery Space: Accommodates 6S 8000mAh batteries, extending flight time for long missions.

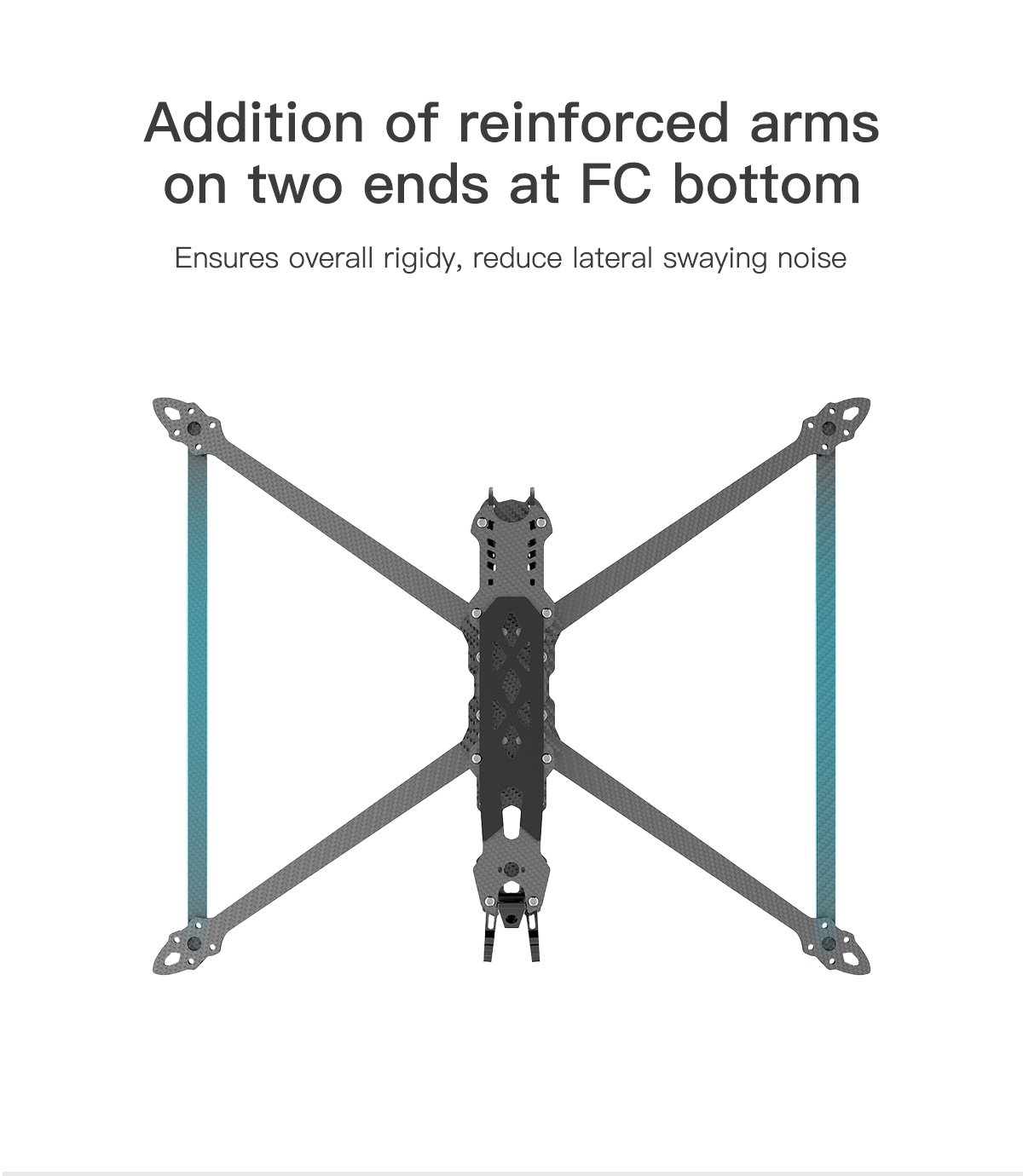

Reinforced Structure: 7mm arm plates and vertical reinforce arms reduce vibration, stabilizing gyroscope performance during heavy flights.

Ample Stacking Space: 30mm aluminum standoffs fit multiple components (FC, VTX), simplifying complex setups.

Universal Compatibility: Multiple fixing hole sizes for VTX, FC, and motors work with standard drone accessories, enhancing versatility.

How to Assemble the Frame

Unpack the Carbon Fiber Drone Frame and verify components: plates, arms, battery strap, and pads.

Attach 7mm arm plates to the 3mm base plate using M3 screws, aligning with 19×19mm motor holes.

Install vertical reinforce arms and 3mm midplate to enhance stability.

Mount the 2mm top plate, ensuring 30mm standoffs provide enough space for FC and VTX.

Secure battery strap and anti-slip pad; add EVA landing pads for protection during takeoffs/landings.

Application Scenarios

Aerial Photography: Carrying heavy cameras for professional shoots.

Industrial Inspections: Supporting sensors for pipeline or power line checks.

Logistics & Delivery: Lightweight payload transport in commercial operations.

DIY Projects: Custom builds with Carbon Fiber Drone Frame Kits requiring heavy-load capability.

Value to Buyers

Payload Versatility: Eliminates need for separate heavy-load drones, reducing equipment costs.

Longer Missions: Large battery support cuts downtime for recharging.

Stability: Reinforced arms minimize vibration, improving data/footage quality.

Easy Integration: Universal holes fit existing components, saving setup time.

Certifications and Compliance

Complies with CE and FCC standards, meeting global drone frame regulations for safe operation.

Customization Options

Offers custom carbon fiber thickness (6-8mm arms) and battery strap lengths. Supports pre-drilled holes for specific payload mounts on bulk orders.

Production Process

Frames undergo Carbon Fiber Cnc Cutting for precision, layer pressing for strength, and load testing (up to 3kg). Each unit is inspected for fit and durability.

FAQ

Q: What’s the max battery size it can hold?

A: Fits 6S 8000mAh LiPo batteries for extended flight time.

Q: Can it handle racing with heavy payloads?

A: Designed for stable heavy-load flights, not high-speed racing.

Q: Is it compatible with FPV cameras?

A: Yes, 19×19mm camera holes fit most FPV models.

Q: How does it compare to lighter frames?

A: Balances 3kg capacity with 270g weight—stronger than standard lightweight frames.

Q: Are replacement arms available?

A: Yes, 7mm carbon fiber arms are sold as drone accessories.
