XYH FPV Long-Distance 4.9~5.8GHz 2500mW Transmitter offers adjustable power (25mW-2500mW), 7-36V input, MMCX antenna, and 20×20mm mounting. Lightweight (18g) with built-in fan cooling, it supports NTSC/PAL, IRC protocol, and fits carbon fiber FPV Drones, 5 Inch FPV Drone Kits. Ideal for long-range FPV racing and aerial photography.

Product Overview

Designed for long-range FPV operations, this 4.9~5.8GHz 2500mW Wireless Video Transmitter is a critical drone accessory for carbon fiber FPV Drones and carbon fiber Racing Drone frames. Its 2500mW max power ensures stable video transmission over extended distances, while adjustable power levels (25mW-2500mW) adapt to different flight scenarios—from indoor training to outdoor long-range missions. With a compact design (41×25×13mm) and 20×20mm mounting holes, it integrates seamlessly into 5 Inch FPV Drone Kits and DIY carbon fiber drone builds, supporting both hobbyists and professional pilots.

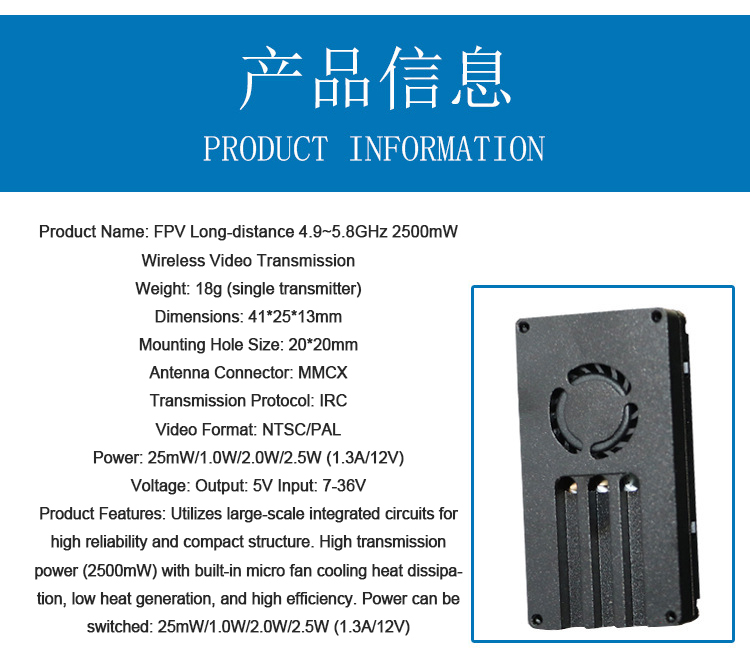

Technical Specifications

Product Name: FPV Long-Distance 4.9~5.8GHz 2500mW Wireless Video Transmitter

Weight: 18g (single transmitter; lightweight for drone balance)

Dimensions: 41×25×13mm (compact for tight spaces in carbon fiber fpv frames)

Mounting Hole Size: 20×20mm (compatible with standard FPV drone mounts)

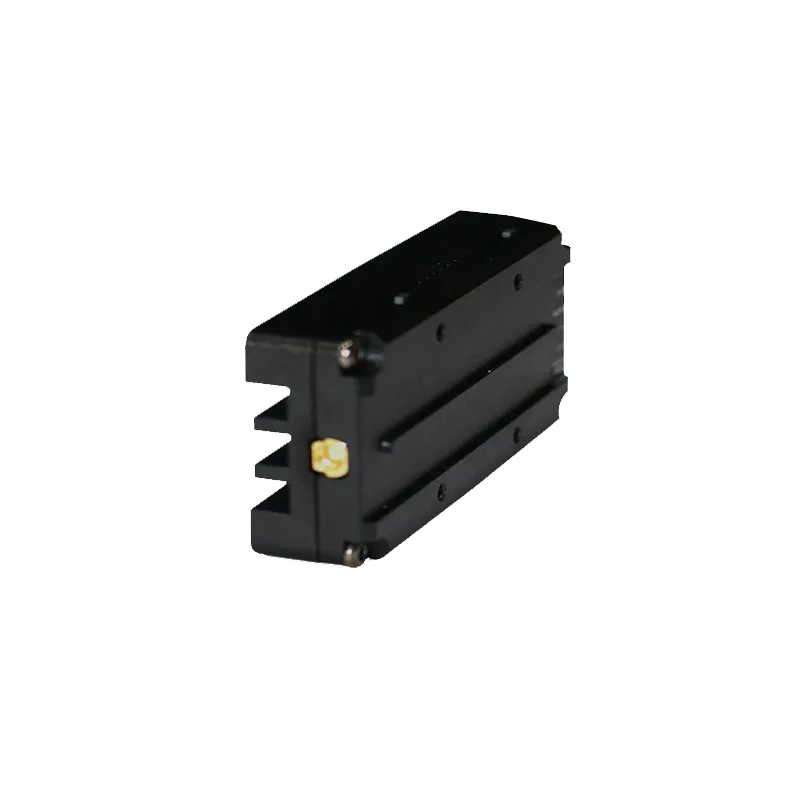

Antenna Connector: MMCX (supports high-gain antennas for extended range)

Transmission Protocol: IRC (stable, anti-interference for long-distance)

Video Format: NTSC/PAL (auto-switching for global compatibility)

Power Options: Adjustable 25mW / 1000mW / 2000mW / 2500mW (1.3A/12V at max power)

Voltage Requirements: Input 7-36V (wide range for various drone batteries), Output 5V (powers cameras)

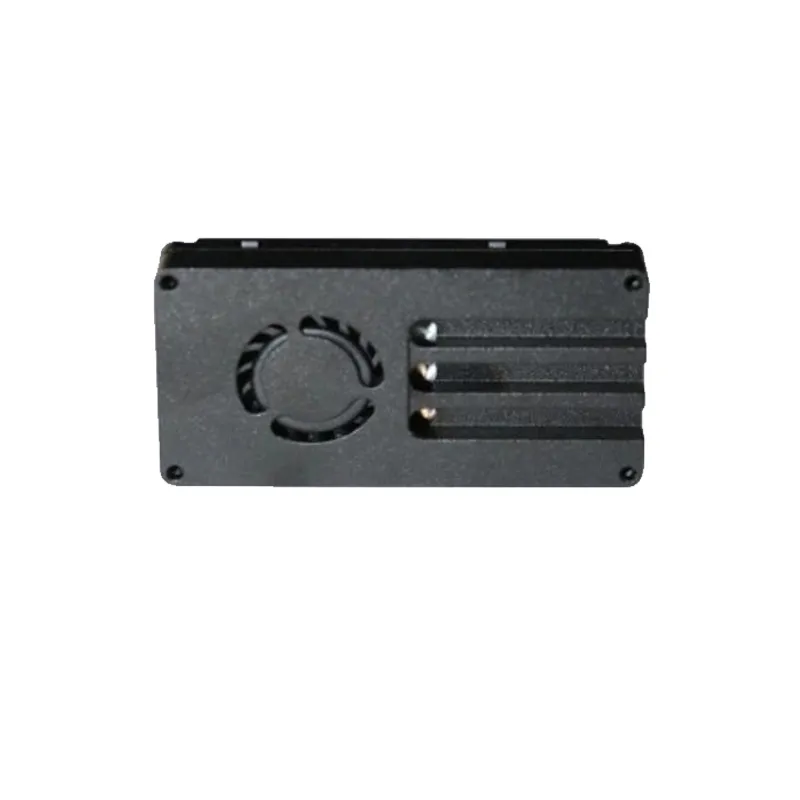

Cooling System: Built-in micro fan (low heat generation, high efficiency)

Compatibility: Carbon fiber FPV drones, 5 Inch FPV Drone Kits, Carbon Fiber Racing Drone frames

Product Features

Long-Range High Power: 2500mW max power delivers 2-3x farther transmission than 1000mW alternatives, ideal for carbon fiber FPV drones flying long-distance courses.

Adjustable Power Modes: Switch between 25mW (indoor) to 2500mW (outdoor) to balance range and battery life, adapting to FPV racing or aerial photography needs.

Efficient Cooling: Built-in micro fan prevents overheating at max power, ensuring consistent performance for extended flights—critical for carbon fiber Racing Drones in competitions.

Wide Compatibility: 7-36V input works with most drone batteries; 20×20mm mounting fits 5 Inch FPV Drone Kits and carbon fiber fpv frames without adapters.

Compact Lightweight: 18g weight and small size avoid affecting drone agility, perfect for Lightweight Carbon Fiber Drone bodies.

How to Install the Transmitter

Mounting: Secure the transmitter to your carbon fiber fpv frame or 5 Inch FPV Drone Kit using 20×20mm mounting holes—align with camera for balanced weight.

Antenna Connection: Attach an MMCX antenna (high-gain recommended for long range) to the connector; ensure tight fit to avoid signal loss.

Power Wiring: Connect the transmitter to the drone’s power system (7-36V input); use the 5V output to power your FPV camera if needed.

Power Mode Setup: Select the appropriate power level (e.g., 2500mW for long range) via the transmitter’s switch or companion app.

Test Transmission: Power on the drone and FPV goggles; verify video clarity at different distances, adjusting antenna position if needed.

Application Scenarios

FPV Long-Range Racing: 2500mW power ensures clear video for carbon fiber racing drones navigating extended courses, avoiding signal dropout.

Aerial Photography: Stable transmission supports carbon fiber FPV drones capturing footage over large areas (e.g., farms, construction sites).

Industrial Inspections: Enables long-distance video for drones inspecting power lines or pipelines, where close proximity is unsafe.

DIY Drone Builds: Integrates into Carbon Fiber Drone Frame kits and 5 Inch FPV setups, ideal for hobbyists testing long-range capabilities.

Value to Buyers

Pilots: 2500mW power expands flight range, opening up new racing/training areas; adjustable modes save battery life.

Drone Manufacturers: Wide voltage and mounting compatibility simplifies integration into carbon fiber FPV drone models, reducing design costs.

Industrial Users: Stable long-range transmission ensures reliable data for inspections, minimizing re-flights and improving efficiency.

Certifications and Compliance

Complies with CE, FCC, and ROHS standards, meeting global wireless device regulations for safe use in major markets (North America, Europe, Asia).

Customization Options

Offers bulk-order customization for power level presets (e.g., locked 2500mW for industrial users) and mounting hole adjustments (to fit specific Carbon Fiber Drone Frames). Supports branded packaging for commercial partners.

Production Process

Transmitters undergo:

1) Circuit board assembly (large-scale integrated circuits for reliability);

2) Fan and connector installation;

3) Power and signal testing (at all power levels);

4) Quality checks (size, weight, cooling efficiency) to ensure performance.

FAQ

Q: Will it work with my 5 Inch FPV Drone Kit?

A: Yes—20×20mm mounting holes and 7-36V input fit most 5 Inch FPV Drone Kits and carbon fiber fpv frames.

Q: How far can it transmit in open areas?

A: Up to 5-8km (2500mW, high-gain antenna), depending on environmental conditions.

Q: Does the fan add noise to video?

A: No—low-noise fan design avoids interfering with audio/video signals from FPV cameras.

Q: Can it power my FPV camera?

A: Yes, 5V output directly powers most FPV cameras, reducing wiring complexity.

Q: Is it compatible with non-IRC receivers?

A: Optimized for IRC protocol, but works with most 4.9~5.8GHz FPV receivers (check frequency match).
