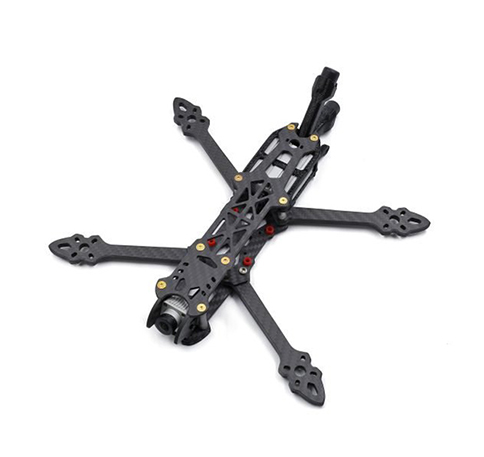

Is the carbon fiber drone shell a one-piece mold?

2025-09-06 10:58:44

The shell of a carbon fiber drone is one of its core components. It can be molded in one piece, but only with the right mold. Carbon fiber drones come in several different designs, and one-piece molding is only suitable for a portion of the design. The remaining parts are often assembled using a modular process.

One-piece shells are typically manufactured using a molding process, where the carbon fiber material is placed in a mold and then cured under heat and pressure. This process creates a single, seamless component that is both strong and lightweight. To achieve this, the layup process is crucial. Civilian drones mostly use manual layup.

The application of a carbon fiber drone determines its appearance. Carbon fiber drones with more complex designs are more likely to be produced using an modular process, facilitating design modifications and subsequent maintenance. The advantages of carbon fiber drones include their light weight, exceptional tensile strength, high elastic modulus, excellent fatigue resistance, and a relatively long overall service life.

Is thermoplastic carbon fiber suitable for drones?

Currently, most of the carbon fiber used in drone manufacturing is actually thermoset carbon fiber composites. These materials are made with a resin matrix and carbon fiber reinforcement, and are manufactured using a heat-pressure curing process. The performance offered by thermoset carbon fiber drones is already excellent, and thermoplastic carbon fiber composites are poised to significantly improve upon this.

Thermoplastic carbon fiber composites, a composite material formed by fusing carbon fiber with thermoplastic resin, offer significantly improved high-temperature and wear resistance, as well as the unique ability to be reshaped upon heating. This is why thermoplastic carbon fiber materials are highly anticipated.

Thermoplastic carbon fiber composites can be manufactured using both 3D printing and traditional processing techniques.

Advantages of Thermoplastic Carbon Fiber UAVs:

1. Increased Production Speed: Compared to traditional thermoset composites, thermoplastic carbon fiber composites can be produced more quickly because they can be melted and reshaped multiple times without losing their properties.

2. Enhanced Impact Resistance: Thermoplastic carbon fiber composites are generally more impact-resistant than traditional composites, which are brittle and prone to cracking under stress.

3. Recyclable and reusable: Thermoplastic carbon fiber composites can be recycled, making them a more sustainable option than traditional composites.
